Git merge driver & SSH

.murk is a single JSON file with encrypted values. A plain git merge does not work well on it. git cannot know that two different encrypted blobs can hold changes to different keys that do not conflict. So murk has its own merge driver. murk also accepts SSH keys as recipients, so you do not need a separate age key.

Using an SSH key as a murk recipient

Terminal window
murk setup-merge-driver

This command does two things:

  • It adds *.murk merge=murk and .murk.* merge=murk to .gitattributes, so the driver covers .murk, prod.murk and .murk.prod. Commit that file. It goes to every clone with the repository.
  • It writes the driver definition to .git/config. That is local git configuration, which does not go with the repository. Everyone who works on the vault runs murk setup-merge-driver once in their own clone.

Setup changes nothing when another merge driver is in place. This is the case when git config already sets merge.murk.driver to a command that murk did not write. It is also the case when a line in any attributes file git reads (each .gitattributes, .git/info/attributes, core.attributesFile or the system file) gives files that murk’s lines would cover another merge setting. A line such as *.prod merge=custom counts, because it covers a .murk.prod vault. A line such as *.png binary does not stop setup. The message names each line with its file and line number. Setup changes git config before .gitattributes. If git config fails, .gitattributes stays unchanged.

The definition is murk merge-driver -- %O %A %B %P, and git runs murk from your PATH. git runs the driver during a merge or rebase in which both branches changed .murk. Without it, git does a text three-way merge on the raw file. The driver’s arguments are BASE OURS THEIRS PATH. BASE is the common ancestor. PATH is the path of the vault (git’s %P), so the driver reads the correct trust pin and finds that vault’s key. The -- keeps a vault named like a flag a path.

The driver merges secret changes that do not conflict, such as different keys added or changed on each side. It decrypts secret values only when both sides changed the recipients in the same way. Every ciphertext then differs from the ancestor, so it compares the values to find which side changed each secret.

Run the driver with your key available: MURK_KEY, MURK_KEY_FILE, or the stored key of the vault being merged. The driver finds the stored key of .murk.prod or prod.murk as --vault does, so a vault with its own key merges with no setup.

The driver never merges a vault as text. It merges as vaults only when murk reads all three sides as vaults. A file that matches the pattern but cannot be a vault is merged as text, with conflict markers where both sides changed the same lines. Examples are .murk.bak holding notes, or a .murk.json without vault keys. A file could be a vault when:

  • it is valid JSON with a top-level recipients, secrets, meta, vault_name or vault_id key,
  • it is not valid JSON and starts with {, after a byte-order mark and whitespace, or
  • it is not valid JSON and uses one of those names as a JSON key ("secrets":).

The driver reads a UTF-16 file as its text. Notes that only quote a name (the "secrets" field) cannot be a vault.

When a side is or could be a vault but murk cannot read every side, the driver stops. Examples are a vault re-saved with a byte-order mark, as UTF-16 or with a stray line, and a vault overwritten on one branch. The driver puts ours and theirs in the file between conflict markers and names each side it cannot read. When a side is a vault that murk reads, keep one side with git checkout --ours or --theirs, check it with murk verify, and redo the other side’s changes. When no side reads as a vault, the message says that the file may be a vault. If it is not a vault, edit the file to merge it by hand, then git add it.

When both branches created the same vault, for example murk init --vault .murk.staging on each, there are two separate vaults, and no merge can combine them. The driver puts both sides in the file between conflict markers and stops. It names the secrets that only one side has. Keep one side and add the other side’s secrets again:

Terminal window
git checkout --ours -- .murk.staging
murk add API_TOKEN --vault .murk.staging
git add .murk.staging

With a key, the driver checks both sides as a load does:

  • the MAC,
  • a valid signature from a signer that this machine trusts, not an agent grant,
  • the same vault id,
  • for a side that changed the vault, a save counter above the common ancestor’s.

It also authenticates the common ancestor. The ancestor decides what counts as a change and which group memberships the sides are judged against. Without that check, a parent that an attacker chose (a cherry-pick, a git apply --3way) could shape the merge.

The driver merges an ancestor that your key cannot read conservatively. Any difference in the encrypted metadata is then a conflict. It refuses an ancestor that fails its checks. An unsigned ancestor from before 0.14 is the exception. murk cannot check it, and accepts it as history. So a forged ancestor of that kind, in a commit that you cherry-pick or rebase, can set values back to an older revision without a conflict. Check what you merged with murk diff (below) before you push.

A side that 0.13 wrote is judged like a load of it on the branch that you merge into. For these rules, see step 7 of upgrading to 0.14. Make the first 0.14 save on the default branch before you merge branches that still have 0.13 vaults.

If the ancestor or a side fails, the merge is a conflict that names it. The driver then writes no new MAC or signature.

Otherwise, the driver writes the merged vault with a new MAC and signs it with your key. It stays unsigned only when your key cannot sign. The driver numbers it above both sides and above every vault that this machine has accepted.

Without a key, the driver cannot verify or sign. So it refuses any merge that needs new integrity data. It exits 1, and git reports a conflict. Abort the merge (git merge --abort) and run it again with your key available.

The merged vault has your signature, so it must pass the group rule that a load applies. A member of a group must sign each change to its membership. When the merge changes a group’s membership and your key is not in that group, the result is a conflict that says so. A member of the group must do that merge.

Check what you merged, especially when the driver signed the result in your name. Compare with the commit you had before the merge:

Terminal window
git diff ORIG_HEAD -- .murk # recipients, schema, policy and ciphertext entries
murk diff ORIG_HEAD # who can read or sign it, and which secrets changed

git sets ORIG_HEAD to your commit from before a pull or merge, also when it fast-forwards. Run the diff right after the merge, before another pull, merge, rebase or reset moves ORIG_HEAD. You can also save the commit id before you merge, and diff against it.

murk diff [REF] compares the vault with a git ref. The default is HEAD. It prints the structural changes first, one line each: recipients added and removed, signer and signing-key changes, and policy, grant and group-member changes. Then it prints one line for each secret, by key name only: + added, - removed, ~ changed. It prints values only with --show-values.

+ recipient bob@example.com (age1wzsw…8ns8)
~ policy
+ group ops member alice@example.com (age1y8ne…rqke)
- API_KEY
~ DATABASE_URL
+ NEW_TOKEN

A vault that a different key signed than before shows ~ signer, with the old and the new signer. A recipient whose signing key changed shows ~ signing key of …. Add --json for a script. It then prints one object with a secrets array and a changes array.

murk diff also runs on a vault that this machine does not trust yet, with a warning, because it is the review step before murk trust. It verifies the revision at REF before it shows anything from it.

Before 0.14, murk setup-merge-driver wrote murk merge-driver %O %A %B with no path. A driver with that configuration still runs. But it uses .murk as the path, so for a vault with another name it reads neither that vault’s trust pin nor its stored key. Such a vault then merges only with MURK_KEY or MURK_KEY_FILE set. Run murk setup-merge-driver again in each clone: it replaces the old line with murk merge-driver -- %O %A %B %P. It replaces only lines that murk wrote. If merge.murk.driver runs your own command, for example a wrapper script, setup changes nothing and tells you to remove the line first. Until you run setup again, the driver warns that its configuration is old. Its messages then say “the file git is merging” instead of a file name, because git does not pass the name.

Some refusals leave the file as ours, without conflict markers: no key, a save counter at its limit, an agent grant key, or a failed write of the merged vault. The message says that nothing was written and theirs was not merged. Do not commit the file as it is, because that drops their changes. Set your key and run the merge again, or keep one side and redo the other side’s changes with murk.

git runs the driver only when both branches changed .murk. When only one branch changed the vault, git takes that branch’s .murk as it is. This is the usual pull request flow, where main did not change the vault. The merge then has no conflict, even for a recipient change. The next load still checks the signature, the signer and the save counter. Such a merge is often a fast-forward. To see what it changed, run murk diff ORIG_HEAD right after it (see Reviewing a merge).

Server-side merges (the GitHub web UI, merge queues) also do not run the driver. When both sides changed the vault, the text merge either conflicts or gives a vault that fails verification on the next load. murk never gives values from a vault that it cannot verify. So a bad server-side merge shows as a refusal, not as wrong values. Run the merge locally if both sides changed the vault.

When both branches changed the vault, the driver reports a conflict and git stops the merge in these cases:

  • both sides added or changed the same key,
  • one side removed a key that the other side kept or changed,
  • only one side added or removed a recipient,
  • one side changed a secret while the other side changed recipients,
  • both sides changed the recipients in the same way, and also one of these: both added the same secret, a secret changed differently on each side, or one side removed a secret that the other changed,
  • both sides changed the agent policy differently,
  • a side, or the common ancestor, fails the checks above (MAC, signature, trusted signer, grant key, vault id, save counter),
  • the merge changes a group’s membership and your key is not in that group.

When both sides changed the recipients in the same way and the ancestor is an unsigned vault from before 0.14, the driver is stricter. Every secret whose value differs between the sides conflicts. So does every secret that your key cannot read (a group you are not in), because the driver cannot compare it.

To avoid recipient conflicts, authorize and revoke teammates on the main branch, not on a side branch that also changes secrets. A revoke on a side branch already makes this machine refuse the revoked key’s signatures on every branch, main included.

The driver lists each conflicting field and exits 1. The .murk it leaves holds the merge of the secrets and recipients of both sides. It keeps the metadata of our side and has no signature. Do not commit it, and do not accept it with murk trust.

To resolve the conflict, take one side (git checkout --ours .murk or --theirs). Then make the changes of the other side again with murk add KEY, murk circle authorize or murk circle revoke. Check the result with murk circle, then git add .murk and commit. If the side you take is older than the vault this machine accepted on the branch, a load refuses it as rolled back until you run murk trust. Take our side and make the changes of their side again to avoid that.

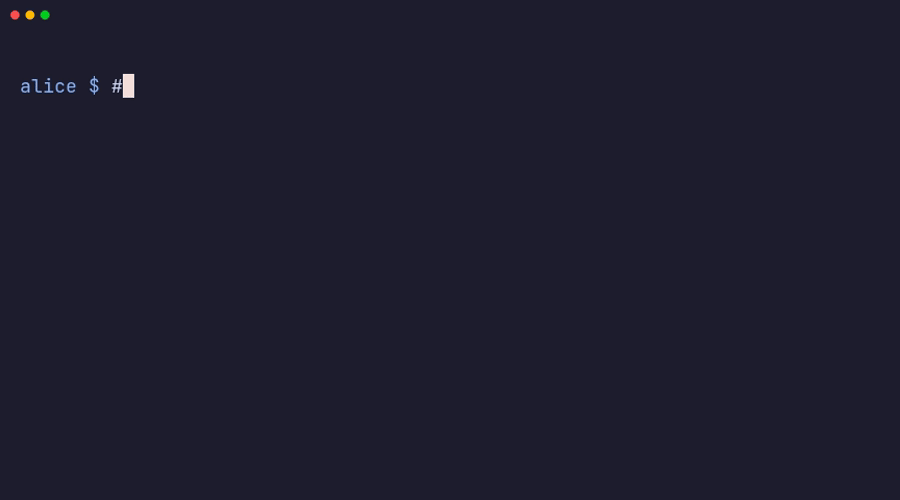

You can use an SSH key instead of a separate age key pair. murk accepts SSH public keys as recipients, in the same recipient list as age1... keys:

Terminal window
murk circle authorize ssh:~/.ssh/id_ed25519.pub --name you@example.com

To decrypt with the matching private key, point MURK_KEY_FILE at it:

Terminal window
export MURK_KEY_FILE=~/.ssh/id_ed25519

murk does not search ~/.ssh on its own. It needs an unencrypted, supported SSH private key that only you can read (mode 600). It cannot read a key that has a passphrase (encrypted SSH keys are not yet supported). Use an unencrypted key, for example one that you keep only for murk, or use an age key.

circle authorize also accepts a bare ssh:, which means ~/.ssh/id_ed25519.pub. It also accepts github:username, which gets the SSH keys of a GitHub account. See working in teams for the GitHub flow and how it records key fingerprints.

murk accepts ssh-ed25519 keys by default. It refuses to authorize an ssh-rsa key unless you pass --allow-ssh-rsa, because ed25519 is strongly recommended (see RUSTSEC-2023-0071). With github:username, murk skips RSA keys with a warning instead, and fails only if every key is RSA.

ssh-ed25519 keys are Ed25519 signing keys, so murk signs with them directly. The recipient string contains the verifying key, so the signature needs no separate registry entry.

ssh-rsa keys cannot sign, because age gives no signing scalar for RSA. A write with an ssh-rsa identity leaves the vault unsigned. A machine whose own key can sign refuses that vault until a signing teammate reviews it and runs murk trust, which re-signs it. The machine of the ssh-rsa user loads an unsigned vault with a warning, and murk verify reports it as a finding. Hardware-backed identities work the same way. See hardware keys and the threat model for the full signing rules.
